Oil Filtration Units

Oil Filtration Units

Are you changing your oil too often or having machine failures? Most companies are now realizing that maintaining clean oil is one of the best investments they can make, with contamination at the core of premature machinery failure and diminished lubricant life.

Why Filtration

Reduced downtime, increased lubricant/ Hydraulic Oil’s life, less recycling and repair cost of critical machine components, consistent product quality are becoming more important than ever, with the awareness for conserving precious resources and our preserving planet. Maintaining clean oil is one of the best investments a company can make, yet contamination often remains an overlooked factor behind premature machinery failure and diminished lubricant life. Actively filtering any Industrial Fluids like Hydraulic Oil, Water based Glycols, Coolants or lubricants can dramatically improve industrial equipment performance and Hydraulic Oil / lubricant life, preventing production downtime and high machinery repair costs.
We engineer a solution by combining several options selecting right technology, optimizing and offering you a technically feasible, cost economic filtration to help you achieve your cleanliness targets, and add components that will help keep your oil clean and dry.

Need of Offline Oil Filtration

There are two basic forms of oil filtration: in-line or off-line. Oftentimes in-line filters cannotadequately control contaminants at low enough levels without significant and costly upgrades.
Under these circumstances Off-line filtration, sometimes called by-pass or kidney loop filtration. off-line filtration is an excellent, cost-effective solution. It makes possible to filter the oil even when the main system in not in operation. Changing filter elements is made easy and can also be done without interrupting the main system.
Off-line filtration can be either permanently installed on the system or portable.Portable applications can be used for dispensing new oil, performing oil changes, cleaning parts, and flushing new components to name a few.

    Short term benefits of offline oil filtration

  • Reduced overall filtration costs (50-80%)
  • No shutdown required for component changes
  • Reduced equipment maintenance
  • Minimal installation costs
  • Minimal training required for operation

    Long term benefits of offline oil filtration

  • Extended component life
  • Extended oil life
  • Extended in-line filter life
  • Reduced downtime due to equipment failure
  • Reduced environmental impact

Microcare Filtration Technology

SMCEPune cover a wide range of industrial application through its customized offline oil filtration systems offered under 3 technologies. Customised to your operating environment, these offline oil filtration units have achieved high level of cleanliness even upto NAS class 4.

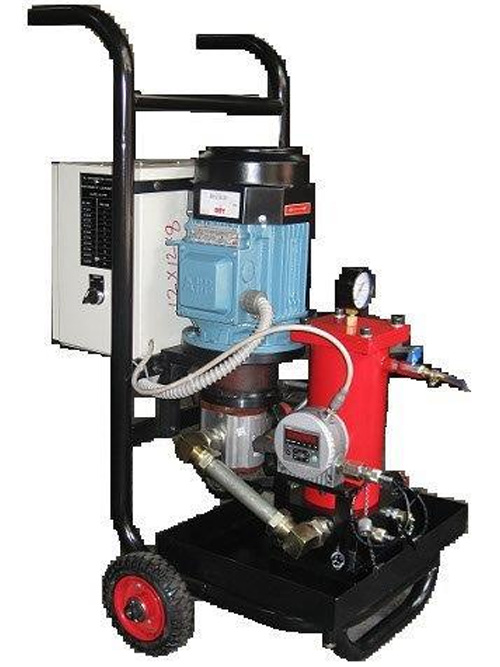

Glass Fiber Media

  • Mineral Hydraulic Oils
  • Synthetic Hydraulic Oils

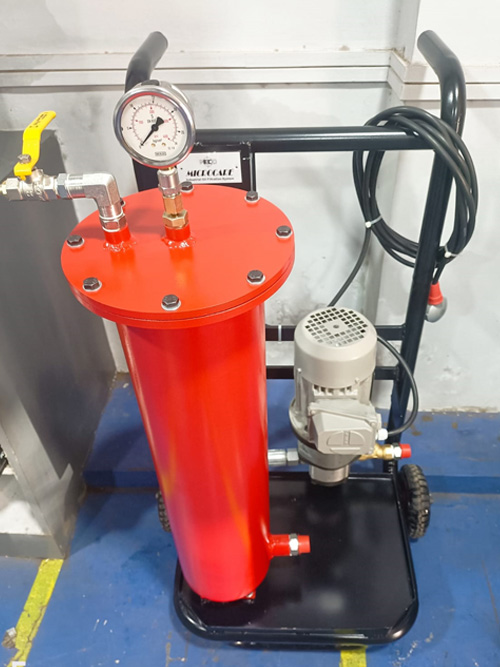

Resin Bonded Cellulose

  • Mineral Hydraulic Oils
  • Synthetic Hydraulic Oils
  • Water based Glycol
  • Industrial Coolants

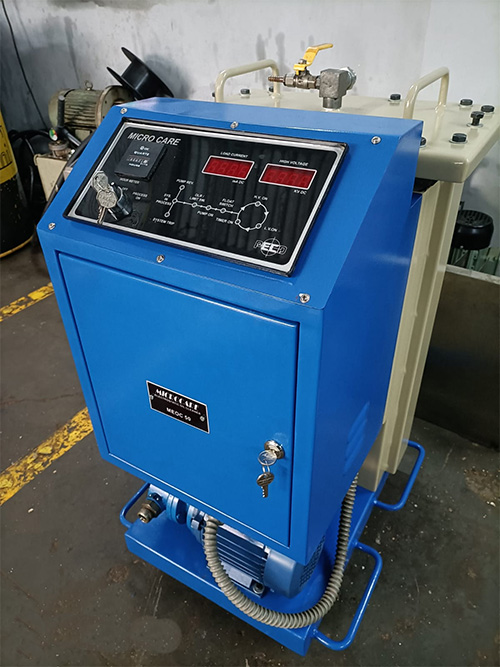

Electrostatic Oil Cleaning

  • Mineral Hydraulic Oils
  • Synthetic Hydraulic Oils

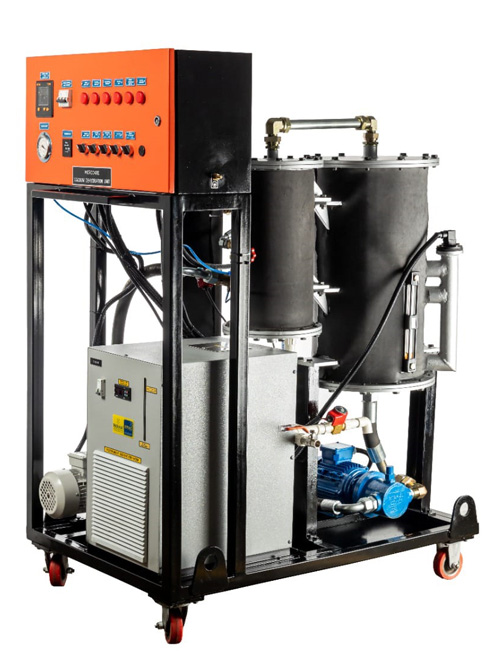

Vacuum Dehydration

  • Water is an almost invisible contaminant with a dramatic impact on the efficiency and longevity of oil systems

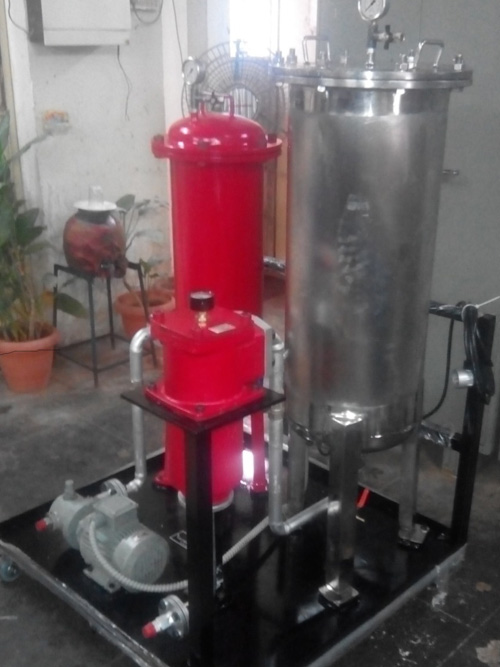

TAN Reduction

  • Principle of Ionic Charge Bonding
  • Ion exchange resin elements reduce acid (ICB method)
  • Cartridge filter - absolute media element of 10 microns
  • Preventing Acids formation in phosphate ester fluids

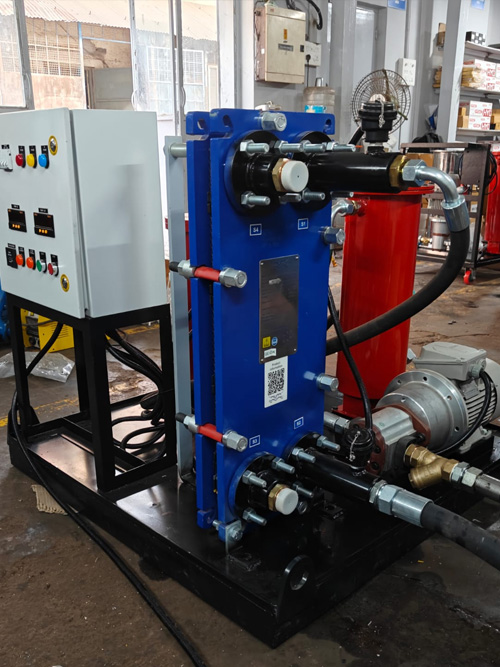

Customization

  • Tailored Design, Multi-Stage Filtration, Modular Construction, Advanced Monitoring & Control, Integration Capabilities. For your special application contact us.
